Description
orbea gravel bike 2024 OnTrack Cycling | ORBEA - Terra H41 1X - Apex XPLR Gravel Bike - 2024 - Infinity GreenORBEA Terra H41 1X Apex XPLR Gravel Bike 2024 Infinity Green Ivory White (gloss) Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Orbea Terra isn't a repurposed road bike or a slimmed down mountain bike. Add

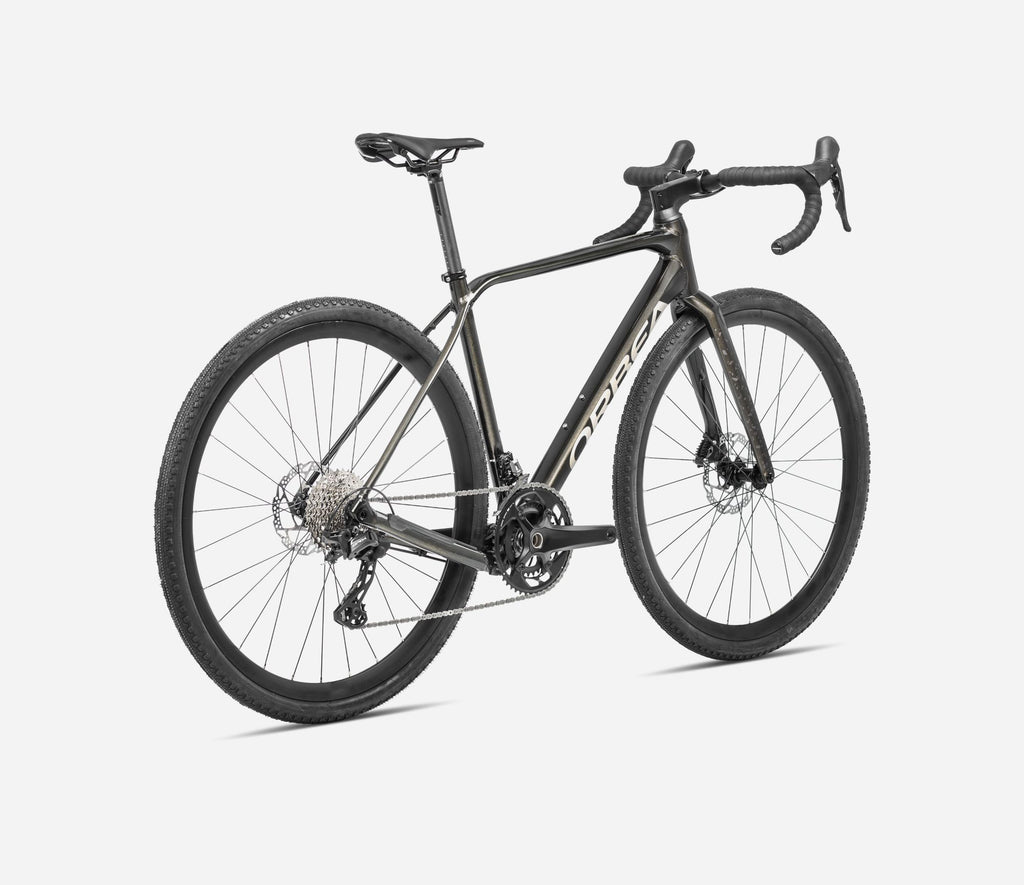

ORBEA | Terra H41 1X - Apex XPLR Gravel Bike - 2024 - Infinity Green - Ivory White (gloss)
Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Orbea Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
The aluminium version is your perfect companion for endless exploring and overnight adventures, offering the most versatility within our Terra family. Advanced hydroformed aluminum and optimized tube sizing maximize comfort for those long rides, while the integrated rear rack mounting points allow you to fit a variety of rear panniers. Whenever you feel that need to escape, Terra H will be ready.
Orbea engineers manipulate the shapes and wall-thickness of their aluminum tubing to increase strength and resistance to unwanted flex. Many of the tubes are butted to save weight in the middle of the tubes, away from the stress of the joints and the weld zones. Using aluminum technologies as advanced as Orbea's carbon manufacturing ensures their aluminum bikes are never second-best.
MAIN FEATURES:
- Terra delivers a balanced ride, with precise handling and maximum control.
- Companion for endless exploring.
- Hydroformed aluminum frame and full carbon fork.
- Sram Apex/Apex XPLR 1x12-speed drivetrain.
- Sram Apex hydraulic disc brakes.
FEATURES:
| Frame | Aluminium: Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1.5", PF, Thru Axle 12x142 mm rear, thread M12x2 P1, DT internal cable routing, 27.2 mm seat tube, MMS system, Tire Clearance: 45C (or 650Bx50 mm) |
| Fork | Carbon: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru Axle 12x100 mm, thread M12x2 P1 |
| Shifter | Sram Apex, 1x12-speed |
| Rear Derailleur | Sram Apex XPLR, 12-speed |
| Cassette | Sram XPLR PG-1231, 11-44T |
| Chain | Sram Apex |
| Crankset | Sram Apex 1 Wide, DM, DUB, 40T |
| Brakes | Sram Apex, Hydr. Disc Brake |
| Wheelset | Alloy, Tubeless, 12x100/12x142 mm, 700c, 21c, 28H |
| Tires | Vittoria Terreno Dry, 700x38c |
| Handlebar | OC Gravel GR31-R, Rise 15 mm, Reach 70 mm, Drop 110 mm |
| Bar Tape | Orbea Eva |
| Stem | OC Road Performance RP21, -6º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Saddle | Prologo Akero AGX, STN, Size 155 mm |
| Seatpost | SP 0.2 Carbon, 27.2 mm, Setback 20 mm |
| Weight | --- |
| Color | Infinity Green - Ivory White (gloss) |
| Reference | R142 |
GEOMETRIES:
| Frame Size | XS | S | M | L | XL | XXL |
| Seat Tube (mm) | 425 | 458 | 491 | 524 | 557 | 590 |
| Top Tube (mm) | 526 | 539 | 558 | 570 | 590 | 603 |
| Chain Stays (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Head Tube Length (mm) | 110 | 131 | 152 | 178 | 199 | 220 |
| Head Tube Angle (°) | 70 | 70.5 | 71 | 71 | 71.5 | 72 |
| Seat Tube Angle (°) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Wheelbase (mm) | 1020 | 1030 | 1039 | 1054 | 1063 | 1072 |
| Stack (mm) | 526 | 548 | 570 | 592 | 614 | 636 |
| Reach (mm) | 375 | 382 | 389 | 395 | 402 | 409 |
| Handlebar Width (mm) | 380 | 400 | 400 | 420 | 420 | 440 |
| Stem Length (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| Crank Length (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 175 |
